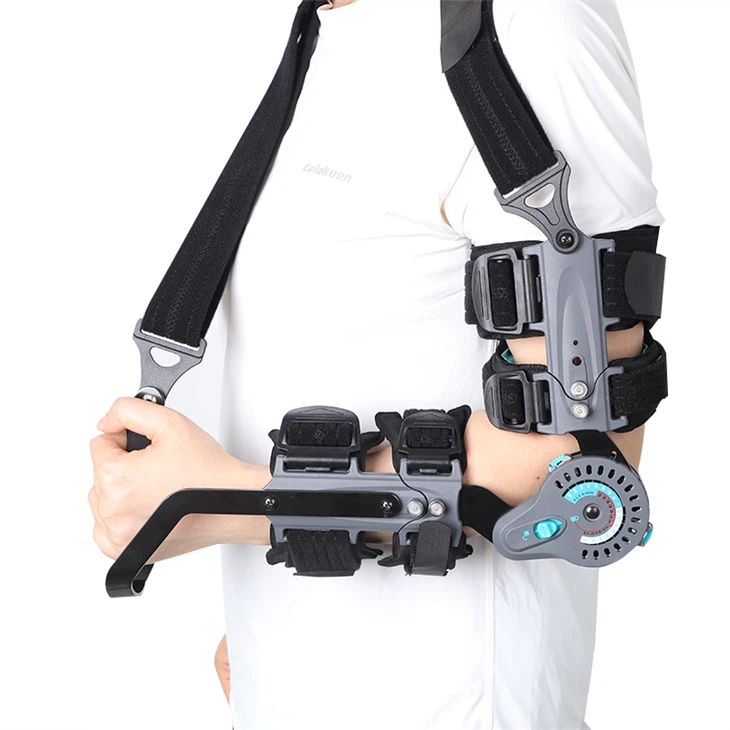

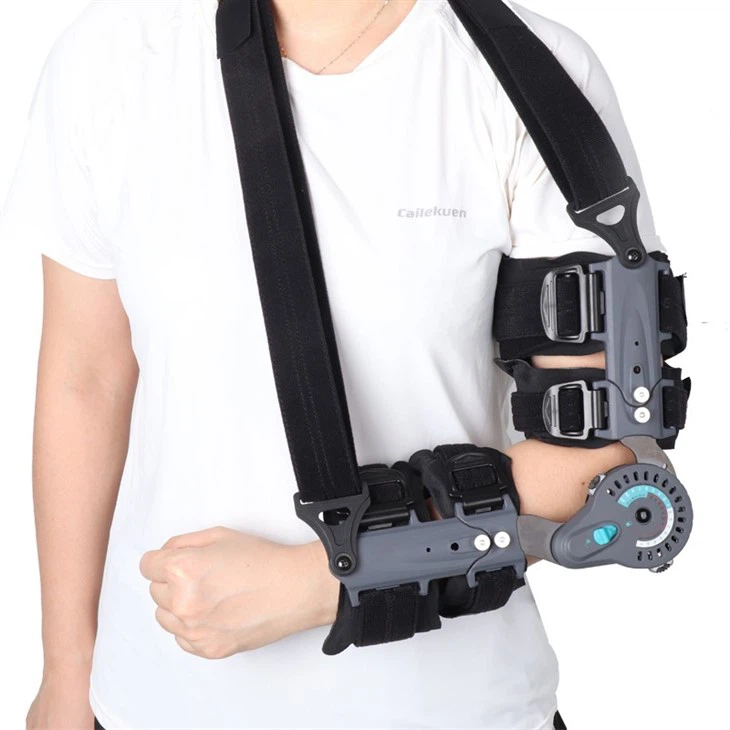

Post-Op Elbow Brace With ROM
Model Number: EB-001
Type: Post-Op Elbow Brace / ROM Elbow Orthosis
Support Area: Elbow / Upper Arm / Forearm
Support Function: Elbow Immobilization and Controlled Motion
Hinge Type: Adjustable Dial-Lock ROM Hinge
Extension Limitation: 0°–90° in 10° Steps
Flexion Limitation: 0°–120° in 10° Steps
Immobilization Settings: 0°–90° in 10° Steps
Frame Adjustment: Adjustable Length and Width
Material: Plastic, Aluminum, Fabrics, Straps
Size: Universal
Side: Left / Right
Color: Grey / Black
OEM / ODM Service: Available
Product Overview
Elbow Immobilization and Adjustable Motion in One Brace
After certain elbow injuries or operations, rehabilitation may involve two different requirements: keeping the joint in a protected position and later permitting movement within prescribed limits.
The EB-001 Post-Op Elbow Brace with ROM accommodates both through an adjustable dial-lock hinge. Extension limits can be selected between 0° and 90°, while flexion settings extend to 120°. The hinge also offers fixed-angle positions when elbow immobilization is required.
Aluminum side supports connect the upper-arm and forearm sections. The frame's length and width can be adjusted to suit different arm proportions, while fastening straps secure the brace above and below the elbow.
Unlike a fabric elbow sleeve, EB-001 uses a relatively open support frame. It leaves much of the arm uncovered and concentrates its mechanical structure around the joint and supporting sections.
Separate left- and right-arm configurations are available for postoperative rehabilitation and other applications requiring controlled elbow positioning.
Products Key Features

10-Degree ROM Adjustment
The dial-lock hinge uses 10° adjustment intervals. This allows extension and flexion restrictions to be selected in defined steps rather than relying on an unrestricted hinge.
Separate Flexion and Extension Limits
Extension settings range from 0° to 90°, while flexion settings reach 120°. The two limits can be selected according to the intended movement range and rehabilitation instructions.
Fixed-Angle Immobilization
The hinge also offers immobilization positions from 0° to 90°. This provides an option for maintaining the elbow at a selected angle when movement needs to be restricted.
Adjustable Aluminum Frame
The aluminum support structure extends along the upper arm and forearm, reinforcing the elbow joint while allowing the frame length to be adjusted for different arm proportions.
Width Adjustment for Arm Fitting
In addition to length adjustment, the frame width can be modified to improve the position of the support components around the upper arm and forearm.


Upper-Arm and Forearm Fixation
Adjustable straps secure the brace on both sides of the elbow. Proper strap placement helps maintain the hinge position relative to the joint during wear.
Open-Frame Construction
The brace does not enclose the entire arm in a continuous fabric sleeve. Its open construction reduces fabric coverage while retaining the mechanical support components needed for ROM control.
Dedicated Left and Right Versions
EB-001 is available in separate left- and right-arm configurations. This allows the correct hinge and frame orientation to be selected for the arm requiring support.

Certifications & export readiness:
Designed to meet CE, ISO 13485 and FDA regulatory requirements; suitable for global markets (Europe, North America, Middle East, Latin America, Asia).
Technical Specifications
|
Item |
Specification |
|---|---|
|
Product Name |
Post-Op Elbow Brace with ROM |
|
Model Number |
EB-001 |
|
Product Type |
Adjustable ROM Elbow Orthosis |
|
Primary Application |
Postoperative Elbow Rehabilitation |
|
Support Area |
Elbow / Upper Arm / Forearm |
|
Support Function |
Immobilization / Controlled Flexion and Extension |
|
Hinge System |
Adjustable Dial-Lock ROM Hinge |
|
Angle Adjustment Interval |
10° |
|
Extension Limitation |
0°–90° |
|
Flexion Limitation |
0°–120° |
|
Immobilization Positions |
0°–90° |
|
Support Structure |
Open Aluminum Frame |
|
Length Adjustment |
Adjustable |
|
Width Adjustment |
Adjustable |
|
Fixation |
Upper-Arm and Forearm Straps |
|
Materials |
Plastic / Aluminum / Fabrics / Straps |
|
Size |
Universal |
|
Side |
Left / Right |
|
Color |
Grey / Black |
|
OEM / ODM |
Logo / Label / Packaging Customization |
Application / Usage
EB-001 is primarily intended for:
- Postoperative elbow rehabilitation
- Controlled elbow flexion and extension
- Elbow joint immobilization
- Elbow flexion contracture management
- Selected elbow ligament injuries
- Elbow joint instability requiring external support
- Selected stable or surgically stabilized elbow fractures
- Rehabilitation following certain elbow dislocations
- Elbow soft tissue injury support
From Immobilization to Controlled Movement
Following an elbow operation or injury, the permitted movement range may change over time.
At an initial stage, a clinician may prescribe a fixed elbow position. At a later stage, controlled movement may be introduced within specified extension and flexion limits.
The adjustable hinge allows EB-001 to accommodate these different settings without requiring the same fixed angle throughout rehabilitation.
The permitted angle range, wearing duration and progression of movement must follow professional instructions. Not every elbow injury or surgical procedure is appropriate for the same immobilization or movement protocol.
Description
Understanding the EB-001 ROM Hinge and Frame Adjustment
The EB-001 elbow brace consists of an articulated hinge, aluminum side supports and adjustable upper-arm and forearm fastening sections.
Its primary adjustment is the ROM hinge. Rather than allowing the elbow to bend freely, the mechanism can be set to restrict extension and flexion within selected limits. Separate immobilization settings are available when the joint needs to be held in a fixed position.

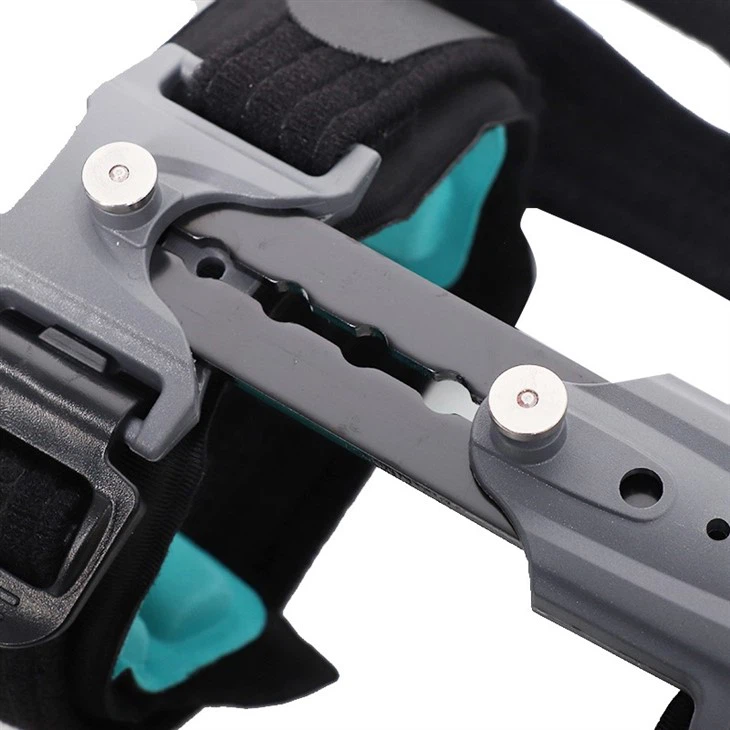

The frame adjustments serve a different purpose. Length and width adjustments help position the brace along the upper arm and forearm so that the hinge can be aligned with the elbow joint.
During fitting, the elbow hinge should sit near the natural axis of elbow movement. The supporting sections are then adjusted and secured with the straps above and below the joint.
This distinction between motion control and anatomical fitting is important: changing the frame length does not change the prescribed ROM setting, and adjusting the hinge does not replace proper fitting.
With its open aluminum support structure, universal adjustable size and separate left/right configurations, EB-001 is an option for orthopedic and rehabilitation supply programs requiring a postoperative elbow orthosis.
BOSEGROW offers OEM logo, labeling and packaging customization for distribution orders.
FAQ
Q: What is EB-001 used for?
A: EB-001 is an adjustable elbow orthosis used for postoperative rehabilitation, joint immobilization and controlled flexion-extension movement when prescribed by a healthcare professional.
Q: What is the adjustment interval of the ROM hinge?
A: The EB-001 hinge uses 10° settings for extension, flexion and immobilization adjustments.
Q: What are the available flexion and extension settings?
A: Extension limitation can be set from 0° to 90°, while flexion limitation can be set from 0° to 120°, with 10° increments.
Q: Can EB-001 hold the elbow in a fixed position?
A: Yes. Its immobilization settings allow selected fixed positions between 0° and 90°.
Q: Can the brace length and width be adjusted?
A: Yes. The aluminum support frame has adjustable length and width to accommodate different arm proportions and assist with correct fitting.
Q: What is the difference between EB-001 and a regular elbow compression sleeve?
A: A compression sleeve primarily applies elastic pressure around the elbow. EB-001 uses an adjustable mechanical hinge and supporting frame to restrict or control elbow movement.
Q: Can EB-001 be used after elbow fracture surgery?
A: It may be appropriate after certain surgically stabilized elbow fractures when controlled positioning or movement is prescribed. The treating clinician must determine whether the brace is suitable for the specific injury and surgical procedure.
Q: Is EB-001 available for both arms?
A: Yes. Separate left- and right-arm versions are available.
Q: What materials are used?
A: The confirmed material specification includes plastic, aluminum, fabrics and fastening straps.
Q: Can EB-001 be customized for wholesale orders?
A: Yes. BOSEGROW offers OEM branding, labeling and packaging options according to the order requirements.
